54" Brush Grapple

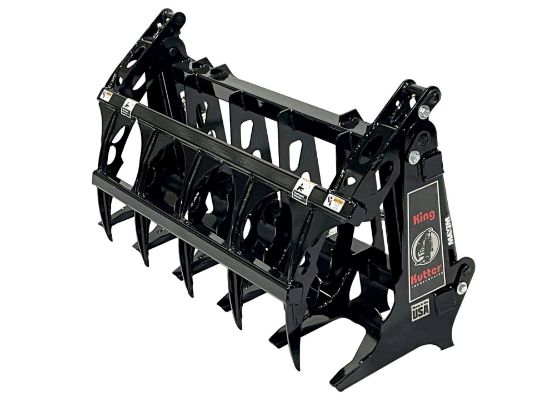

The King Kutter 54” Skid Steer Brush Grapple is constructed with High Tensile Steel which feature 9” steel forks made with ¼” steel plate that are extended to the tube radius where the tube is the strongest, opens to 36” wide and has stands integrated into the rake ribs. The grapple has a Quick Attach compatible hook up, dual cylinders to make sure your load stays secure and is ideal for picking up and moving rocks, logs, brush, debris, and other oddly shaped or hard-to-lift material.
54" Brush Grapple Specs | Specifications |
---|---|
Material | Grade 50 (High Tensile) Steel |
Fork (Tine) Thickness | 1/4" Plate |
Weight | 270 LBS. |
Fork Length | 9" |
Minimum Grip | Less than 6" |
Maximum Opening | 36" |
Width | 55" |
Height | 29" |
Depth | 21" |
Hydraulic Cylinders | 2 ea. 1.5" Bore X 6" Stroke X 1" Dia. Rod |
No. Hose Routing | Protected in Lower Tube |
Stands | Integrated into the Rake Ribs |
Couplings | Pioneer, 1 Male, 1 Female |
