30-50 HP - Series 377
Tandem Disc Harrow
Taylor Pittsburgh’s Series 377 Tandem Disc Harrows are designed for medium to low acreage applications. Suitable for tractors from 30-60 HP. These discs feature a tubular frame in a weight class rugged enough for the farmer or landscaper, yet economical enough for the part-timer.
VIEW DETAILS

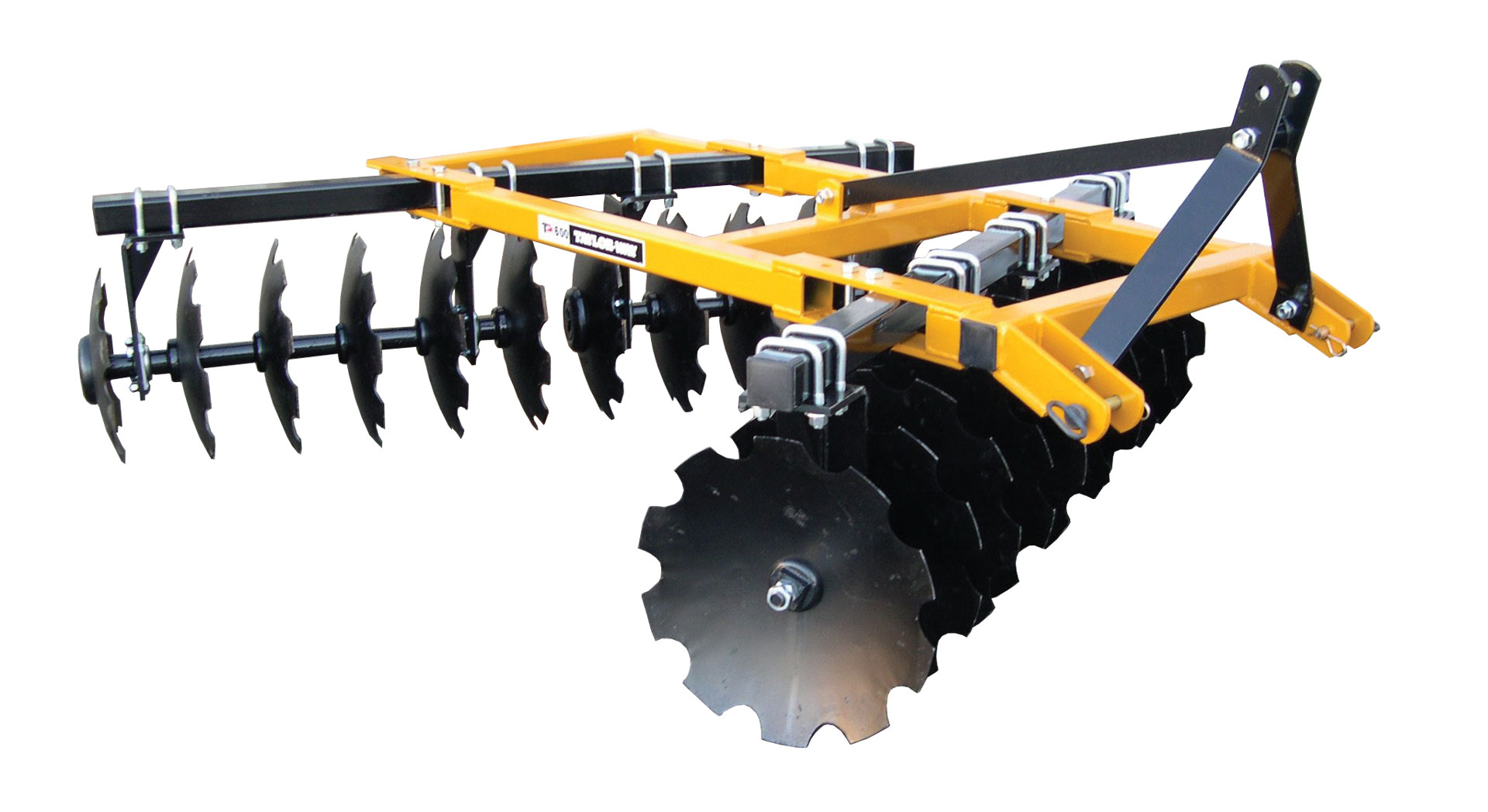

40-60 HP - Series 600
Offset Disc Harrow
Taylor Pittsburgh’s 600 Offset Disc Harrows are designed for medium to low acreage applications. Suitable for tractors from 40-60 HP. These discs feature a tubular frame in a weight class rugged enough for the farmer or landscaper, yet economical enough for the part-timer.
VIEW DETAILS

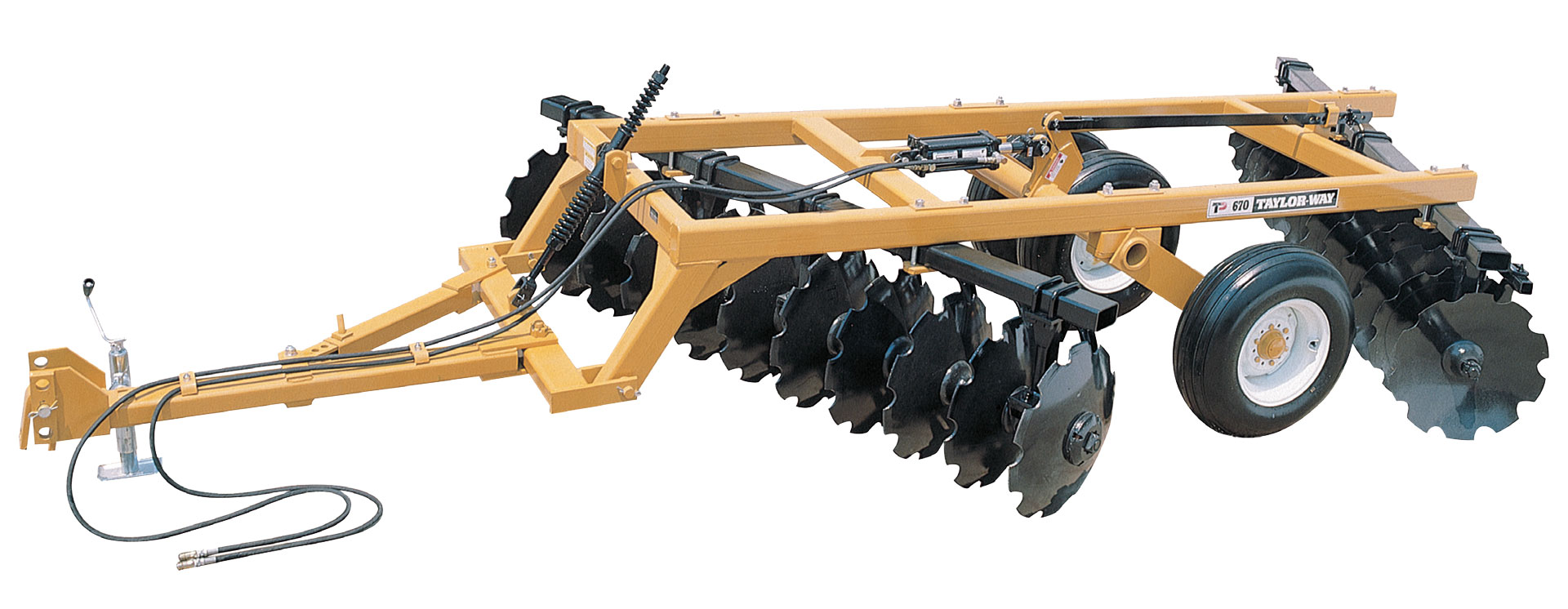

40-70 HP - Series 670
Offset Disc Harrow
Taylor Pittsburgh’s 670 Offset Disc Harrow is the result of proven, field tested engineering to give you precision performance
in a variety of applications. This heavy duty Harrow is ideal for light and heavy field tillage, firebreak cutting and many
orchard applications. The offset design enables maximum penetration and even tillage of soil.
With over 12 widths to choose from, each available in standard or flex bearing hanger type, the 670 Series can easily be
customized to meet your specific application and HP needs. The heavy construction features 1 ½” square gang axles and
common gang components of our larger models, making the 670 one of the most durable and dependable Harrows in its
class. Outstanding features and popular options from a name you trust...Taylor-Way.

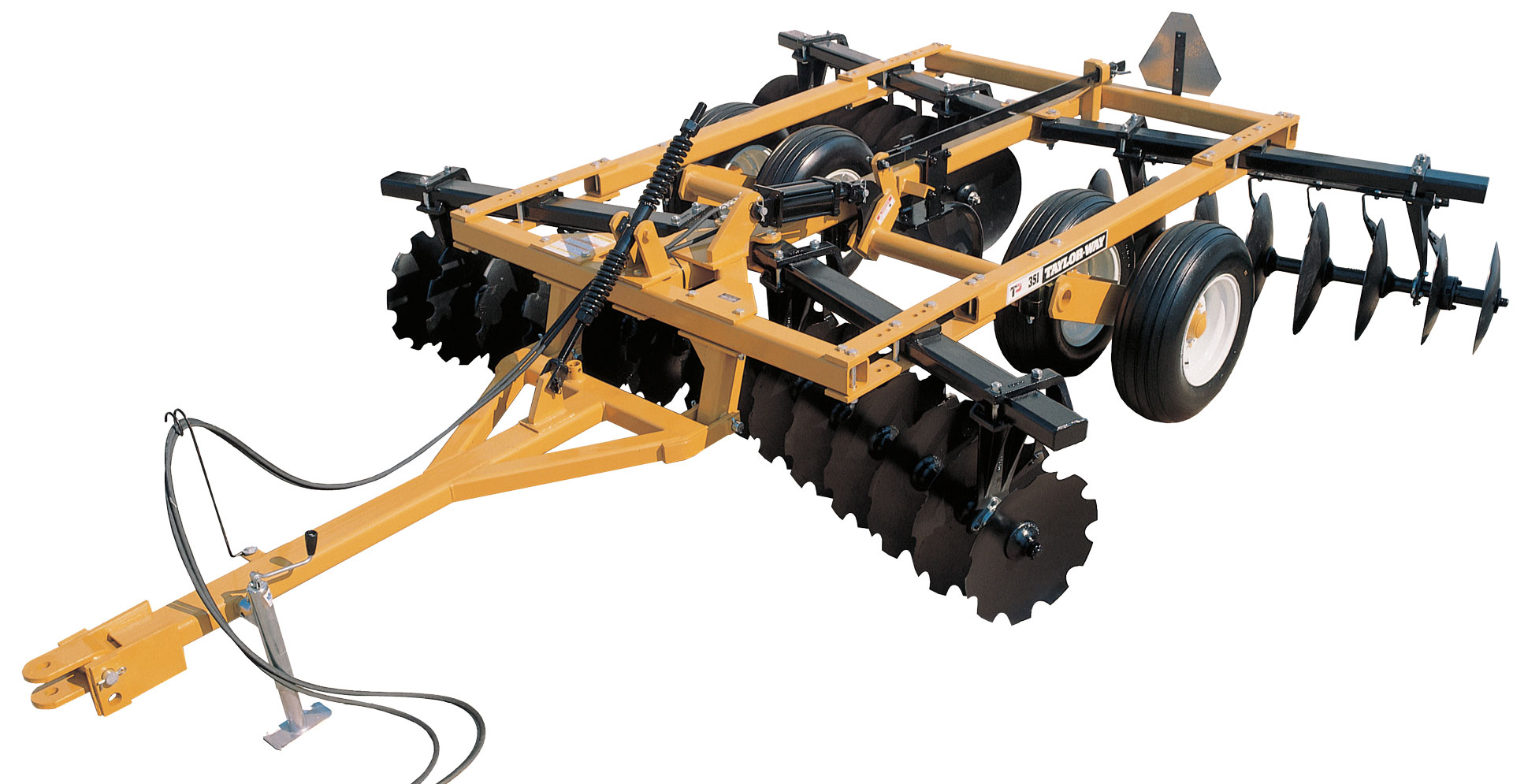

55-85 HP - Series 351
Tandem Disc Harrow
When it comes to sheer versatility and performance, there’s never been a better choice than Taylor Pittsburgh’s 351 Tandem
Disc Harrow. With nearly 40 options in narrow and wide frame configurations, the 351 is engineered with smart features,
easy adjustments and customizing extras.
The rigid, tubular frame (4” x 4” x 3/4”) design creates the stability and weight you need to achieve outstanding cutting
and leveling even in the toughest soil conditions. High carbon, square 1 1/8” gang axles are built to deliver maximum
penetration and durability. Machined, ductile spacer spools combined with 7 1/2”, 9” or combination disc spacing maintain
clearance and optimum pulverization.
Trust the Taylor-Way 351 to make your job easy, providing excellent discing strength in an implement made to last.
Backed by many years of research and experience, you’ll appreciate the craftsmanship at a price you can afford.

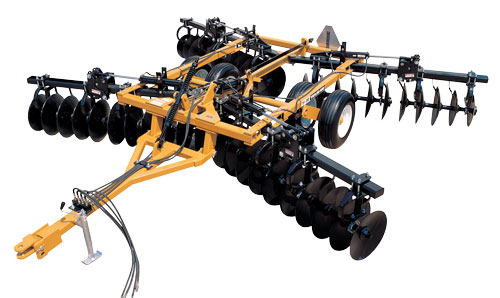

90-125 HP - Series 350
Wheel-Type Wing Fold Tandem Disc Harrow
Built for outstanding cutting and leveling, Taylor Pittsburgh’s 350 Wing Fold Tandem Disc Harrow is one of the most heavy
duty and versatile implements available. Backed by years of Taylor-Way experience, it's durability will speak for itself when
you see the premium construction and features.
With nearly 40 options in narrow and wide frame configurations, the 350 is not only engineered for performance, but the
hydraulic assisted wing fold design makes maneuverability and transport simple…all done right from your tractor seat!
Even in the toughest soil conditions, the sturdy frame adds stability and weight where you need it most. High carbon,
square gang axles are built to deliver maximum penetration, while all the disc and spool spacing options help maintain
clearance and optimum pulverization. You can trust your biggest jobs to the Taylor-Way 350.

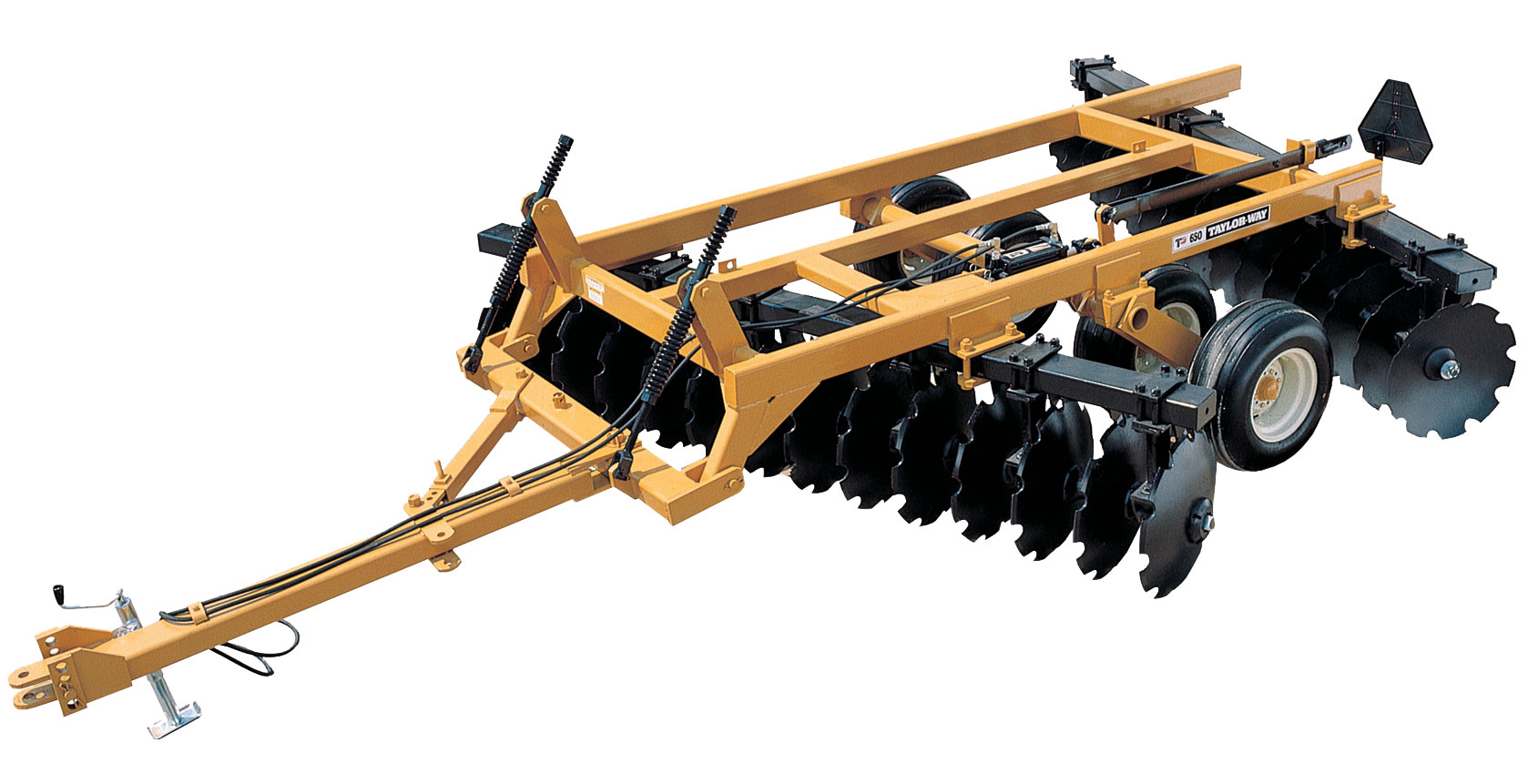

80-180 HP - Series 650
Heavy Duty Offset Disc Harrow
Proven and precise, Taylor Pittsburgh’s 650 Heavy Duty Offset Disc Harrow is the premium implement when you want
customized options and power to get the job done right. The offset configuration provides maximum pulverization for
primary as well as secondary tillage applications. Design features include heavy tubular frame construction, 1 ½”
square gang axles for strength and trunion mounted re-greasable bearings.
Heavy duty with superior leveling capabilities, the 650 encompasses a broad range of cutting widths and blade spacings to
select. That means you’ll never have to sacrifice what you really want from your implement when you choose a Taylor-Way.
Whether you need the 9” spacing or 10 ½” spacing, you’ll feel like this Disc Harrow was custom built just for you.

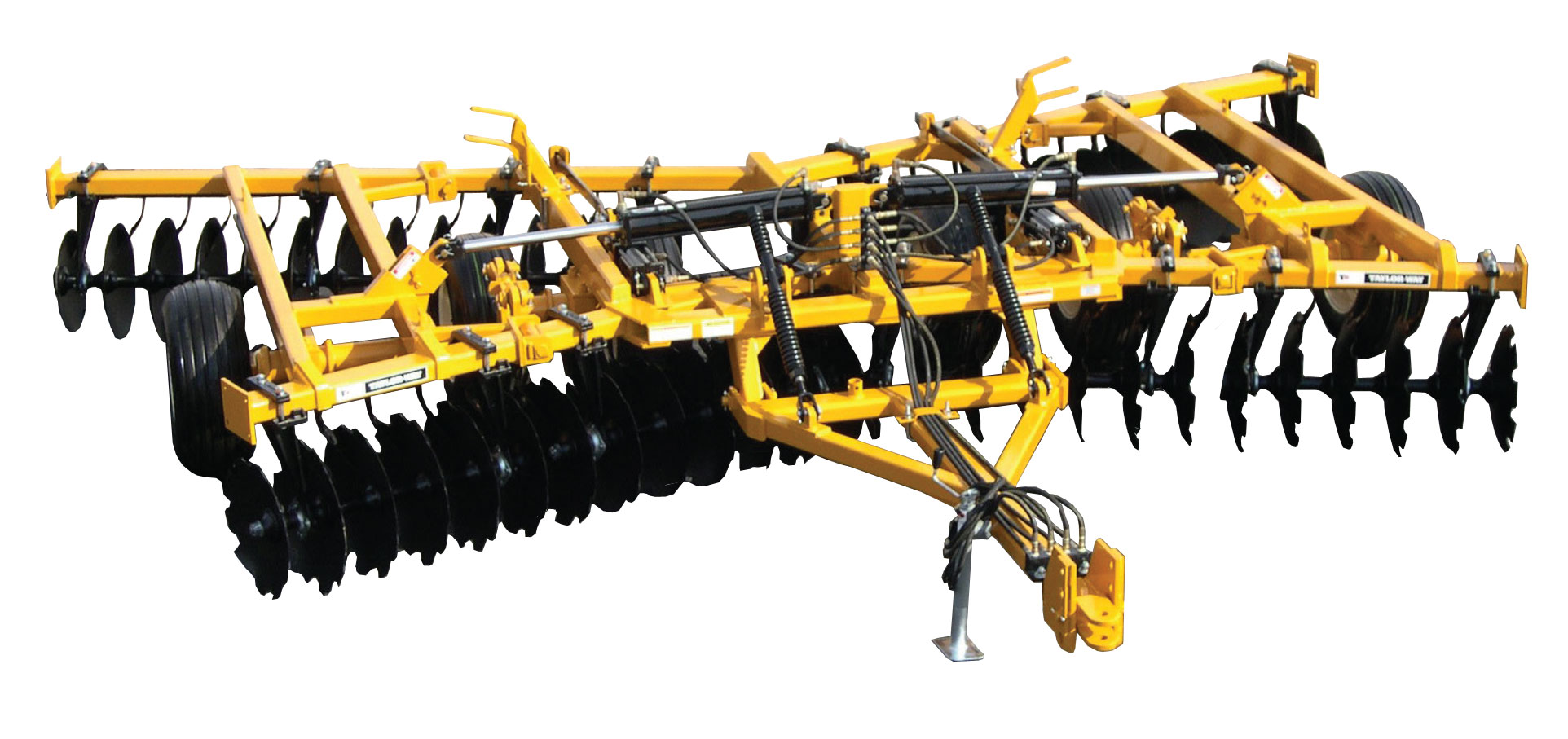

100-140 HP - Series 580
Flex-Wing Tandem Disc Harrow
Taylor Pittsburgh’s flex-wing design delivers excellent cutting and superior leveling ability resulting in a "Taylor Made" finish. When it comes to quality craftsmanship at a price you can afford there is no better choice than the Taylor Pittsburgh’s Series 580 Flex-Wing Tandem Disc Harrow. Trust the Taylor Pittsburgh’s Series 580 to make your job easy, providing excellent reliability in an implement made to last.
VIEW DETAILS

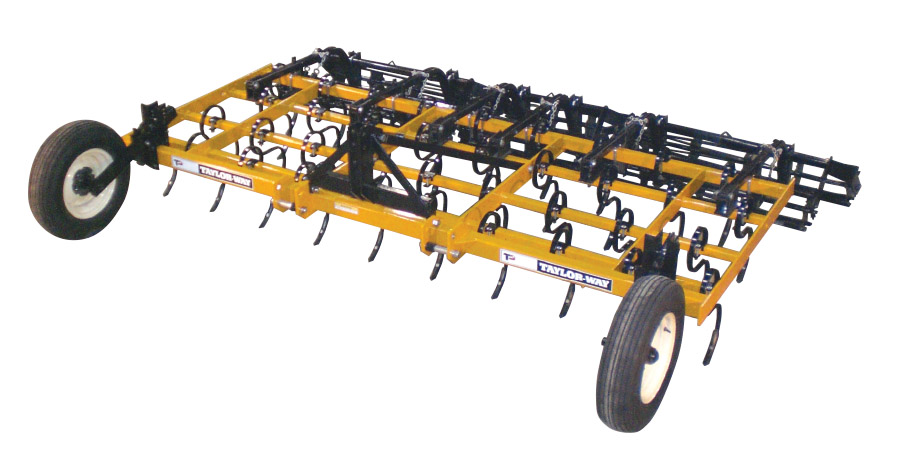

60-145 HP - Series 870/875
Cultivator Incorporator
Cat. II – III, 3-POINT HITCH CULTIVATOR INCORPORATORS feature a strong tubular frame (2”x2”x3/16”) to which we mount the ultra high vibrating tines that fully incorporate chemicals and fertilizer into the soil. The tines are followed by our double roller baskets that create a superior seedbed that’s ready for planting.
