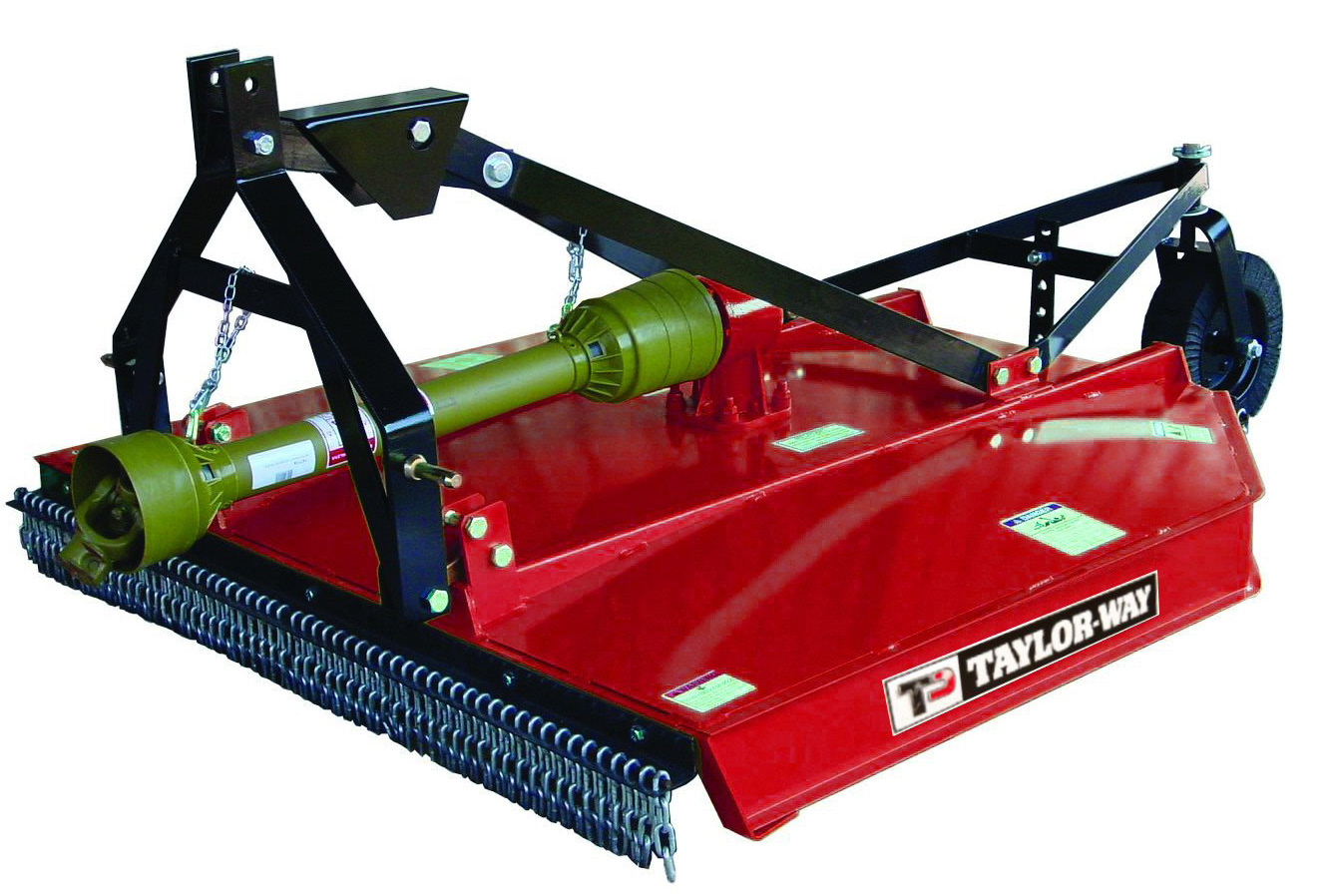

Flex Hitch Domed Deck Rotary Cutter
Series 233
Taylor Pittsburgh’s Patented Series 233 Flex Hitch Rotary Cutter demonstrates the latest in rotary cutter innovation. The Cat. I quick hitchable, flex hitch design, is unlike anything on the market today. The hitch allows the rotary cutter to move 15° up or down on the left or right side of the machine to follow the contours of the field. The domed deck design sheds water and debris to prevent material from collecting on the deck, virtually preventing the deck from rusting.
| Model | 233-L-48-40-PFH / 233-L-48-40-SC-FH |
233-L-60-40-PFH / 233-L-60-40-SC-FH |
233-L-72-40-PFH / 233-L-72-40-SC-FH / 233-L-72-60-SC-FH |

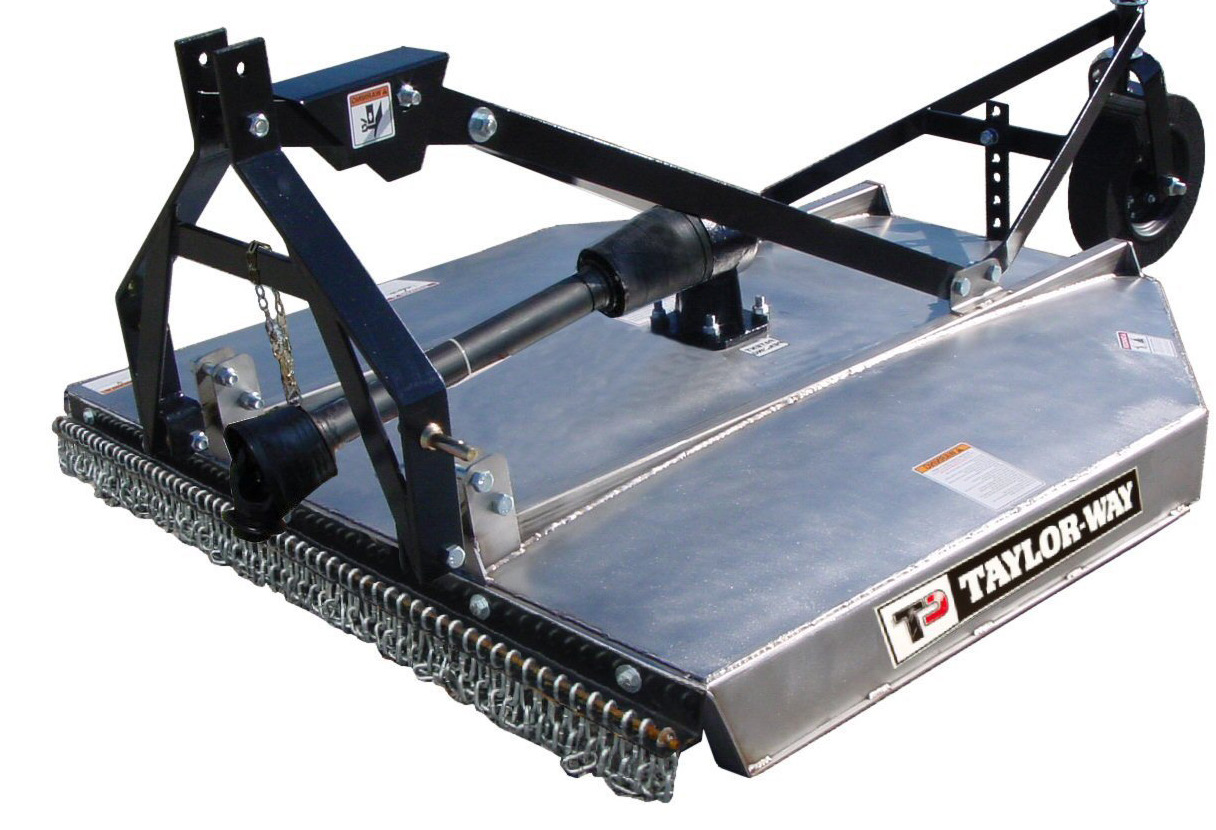

233-L-60-40-SSFH |
|---|---|---|---|---|
| Working Width | 48" | 60" | 72" | 60" |
| Gearbox Rating | 40 HP / 40 HP | 40 HP / 40 HP | 40 HP / 40 HP / 60 HP | 40 HP |
| Blades | ½" x 3" | ½" x 3" | ½" x 3" | ½" x 3" |
| Stump Jumper | Round | Round | Round | Round |
| Cutting Height Range | 2" to 10" | 2" to 10" | 2" to 10" | 2" to 10" |
| Gear Box Protection | SB / SC | SB / SC | SB / SC / SC | SC |
| Deck Material | 12 ga | 12 ga | 12 ga | 12 ga Stainless Steel |
| Side Skirt Material | " I " Beam | " I " Beam | " I " Beam | 10 ga Stainless Steel |
| Tailwheel | Laminated | Laminated | Laminated | Laminated |
| Hitch | Cat. 1 Quick Hitchable | Cat. 1 Quick Hitchable | Cat. 1 Quick Hitchable | Cat. 1 Quick Hitchable |
| Chain Guards | Optional | Optional | Optional | Standard |
| Approx. Weight | 470 lbs. / 497 lbs. | 557 lbs. / 584 lbs. | 664 lbs. / 691 lbs. / 712 lbs. | 565 lbs. |
| Minimum PTO HP | 15 HP / 15 HP | 20 HP / 20 HP | 30 HP / 30 HP / 35 HP | 20 HP |
| Cutting Capacity | Up to 1" | Up to 1" | Up to 1" | Up to 1" |
