Flip Over Disc
Series 233

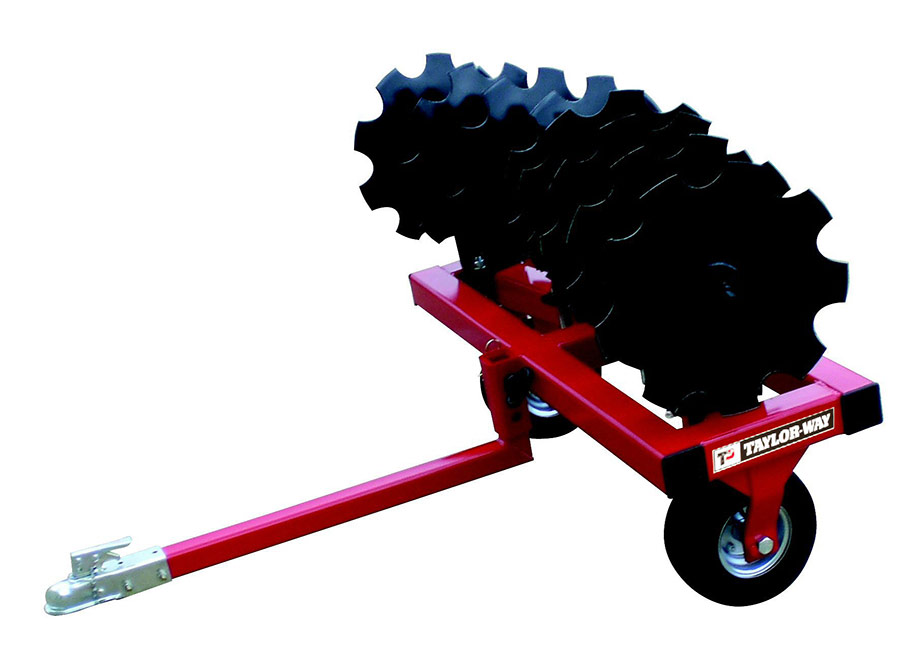

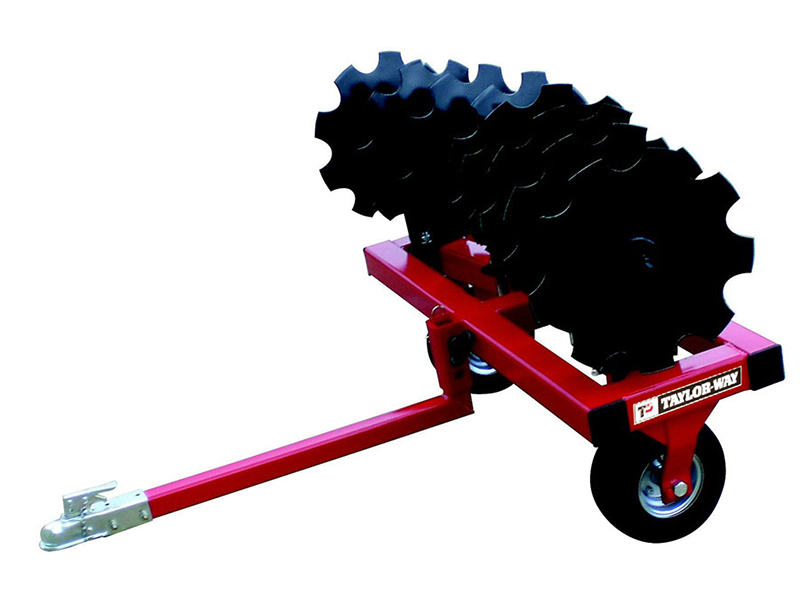

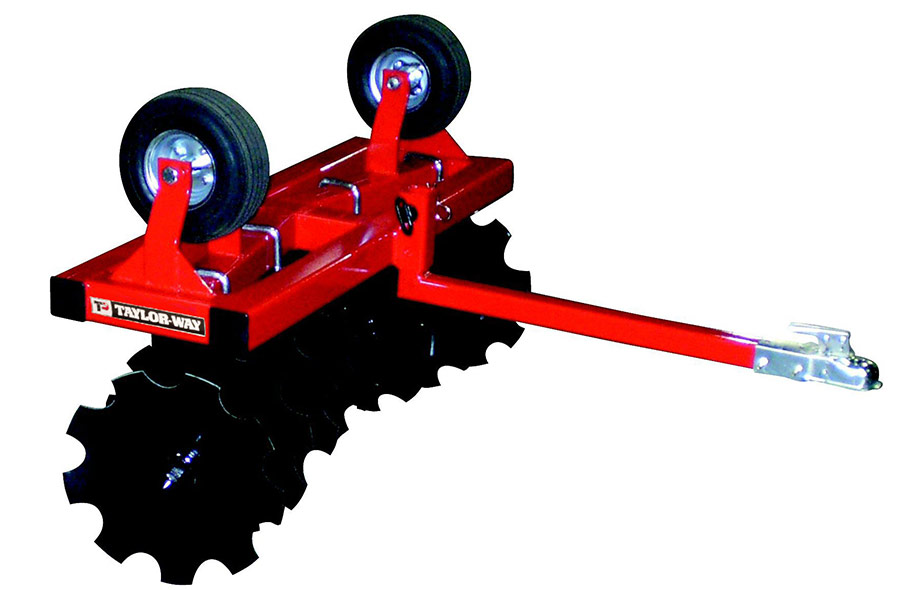

Taylor Pittsburgh’s Flip Over Disc is designed for the toughest applications. It features a full 3" square tube frame that can be weighted, with 1" square axles, 16" notched blades and maintenance free sealed bearings. A full 4-foot cutting width with 20 degrees cutting angle and an adjustable height tongue for various sizes of 4-wheelers or small tractors. It also has a rear receiver hitch (ball hitch not included) so you can pull an ATV seeder or drag harrow for maximum efficiency.
STANDARD FEATURES
3" Square Tube Frame
16" Notched Blades
48" Cutting Width
Adjustable Height Tongue
| Model | Width | Approx. Ship Wt. | Hitch Category | Hitch Ball Diameter | # of Blades | Blade Diameter | Blade Thickness |
|---|---|---|---|---|---|---|---|
| 233-16-8-CDF | 48" | 309 lbs. | Pull Type | 1 ⅞" | 8 | 16" | 3.0 MM |
