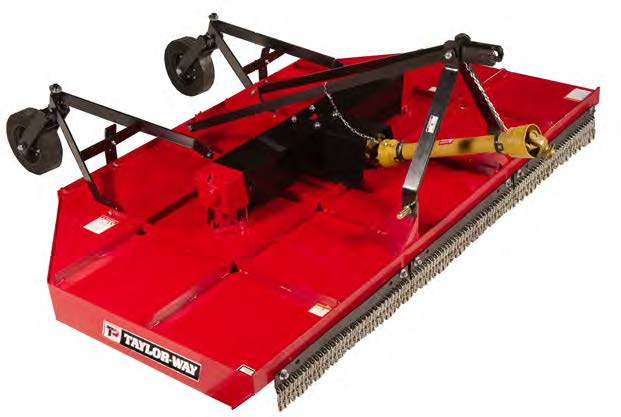

7' / 10' Lift Type Rotary Cutter
Series 233
Taylor Pittsburgh’s Series 233 7’ / 10’ Rotary Cutters are quality built durable cutters constructed with a heavy duty single sheet top deck with cross bracing. Standard features include cast iron gearboxes, stump jumpers, adjustable laminated tail wheels and a shielded PTO with slip clutch.
| Model | 233-84-SC-CG | 233-120-SC-CG |
|---|---|---|
| Size | 7" | 10" |
| Gear Box HP | 75 HP | Outboard 75 HP, Center 100 HP |
| PTO RPM | 540 | 540 |
| Blades | ⅜" x 4" Heat Treated | ⅜" x 4" Heat Treated |
| Stump Jumper | Round | Round |
| Cutting Height Range | 2" to 10" | 2" to 10" |
| Gear Box Protection | Slip Clutch | Slip Clutch |
| Deck Thickness | 10 Ga. | 10 Ga. |
| Side Skirt Depth | 8 ½" | 8" |
| Tailwheel(s) | Laminated | Laminated |
| Hitch | Cat. II | Cat. II |
| Drive Line | Cat. 4 | Cat. 6 |
| Chain Guards | Standard | Standard |
| Approx. Weight | 950 lbs. | 1540 lbs. |
| Minimum PTO Required | 55 HP | 65 HP |
| Cutting Capacity | Up to 1" | Up to 1" |
