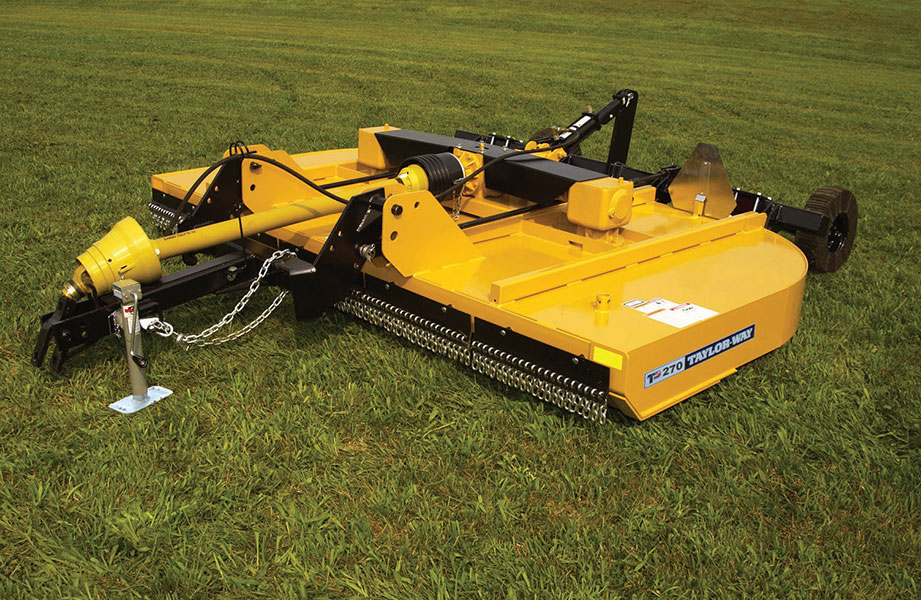

10' Pull and Lift Type Cutter
Series 270
Taylor Pittsburgh’s Series 270 10’ Pull-type and Lift-type Cutters deliver powerful cutting action, and a variety of options that make it easy to customize your implement for a wide range of uses. Designed for tough cutting jobs, our mowers will provide you with years of dependable service.
STANDARD FEATURES
- 7 Gauge Deck Material
- 10” x ¼” Side Skirts
- 90 HP Outboard Gearboxes, and 125 HP Splitter Gearbox, 540 RPM
- Replaceable Skid Shoes
- Tubular (2” x 3”) Bracing
Round Back Rotary Cutters
| Model | Series 270 |
|---|---|
| Cutting Width | 120" |
| Gearbox | Outboard 90 hp 125 Splitter |
| PTO Requirement | 540 |
| Skirt Depth / Material | 7 Gauge (3/16") |
| Deck Reinforcement | 2" x 3" Square Tube |
| Blades | ½" - 4" |
| Stump Jumper | 20" Diameter Round |
| Cutting Height Range | 1 ½" - 12" |
| Cutting Capacity | Up to 2" |
| Tailwheel Type | Laminated or Used Airplane |
| Number of Tailwheels | Single (2) Double (4) |
| Hitch | Cat. II or III Quick Hitch or Pull-Type |
| Safety Shields | Chain Guarding Standard |
| PTO/HP Requirements | 50 - 80 HP |
| Weight | 2,724 lbs. - Whith Chains and 2 Laminated Tires |
| Overall Width | 123 ½" Outside Frame 124 ½" at Skidshoes |
| Overall Length | Pull - 13 ½' Lift - 9 ½' |
