Rear Blade
Series 4500

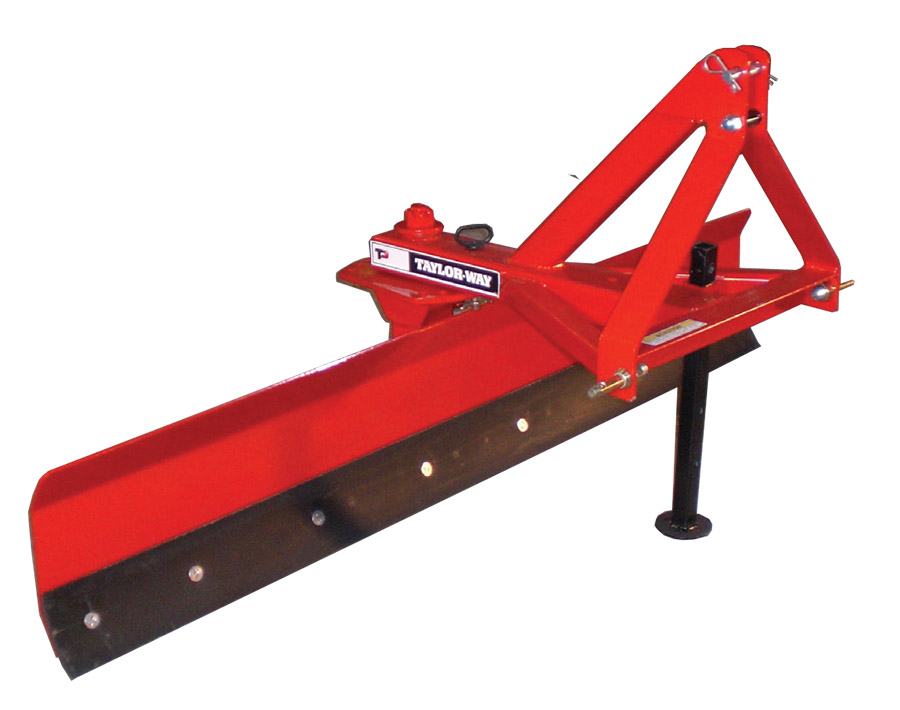

Taylor Pittsburgh’s 4500 Series Rear Blades offer features for most landscaping, grading and snow removal applications. The blade is 6 way adjustable allowing the user to Tilt, Angle, and Offset the blade at the same time to achieve the desired results. The moldboard is a full ¼’ thick with a heat treated double beveled reversible ½” x 6” cutting edge. The pivot pin has a bushing that is a full 2-1/8” in diameter and the blade comes with a kick stand.
Series 4500 Rear Blade
| Model | Width | Approx. Ship Wt. | Angle Adjustments | Tilt | Offset | Parking Stand | HP Range |
|---|---|---|---|---|---|---|---|
| 4500-RB-60 | 60" | 293 lbs. | 5 Front & 5 Rear | yes | yes | yes | 20 - 35 HP |
| 4500-RB-72 | 72" | 313 lbs. | 5 Front & 5 Rear | yes | yes | yes | 20 - 35 HP |
| 4500-RB-84 | 84" | 342 lbs. | 5 Front & 5 Rear | yes | yes | yes | 30 - 45 HP |
| 4500-RB-96 | 96" | 370 lbs. | 5 Front & 5 Rear | yes | yes | yes | 30 - 45 HP |
