Rear Blade
Series 5500
Taylor Pittsburgh's 5500 Series Rear Blades are constructed with a heavy 4” x 4” x ⅜” main tube, straddle type combination 3-point hitch, and manual angle, offset and tilt functions. The 5500 has a reversible cutting edge, a reversible curved moldboard and comes in 3 working widths.

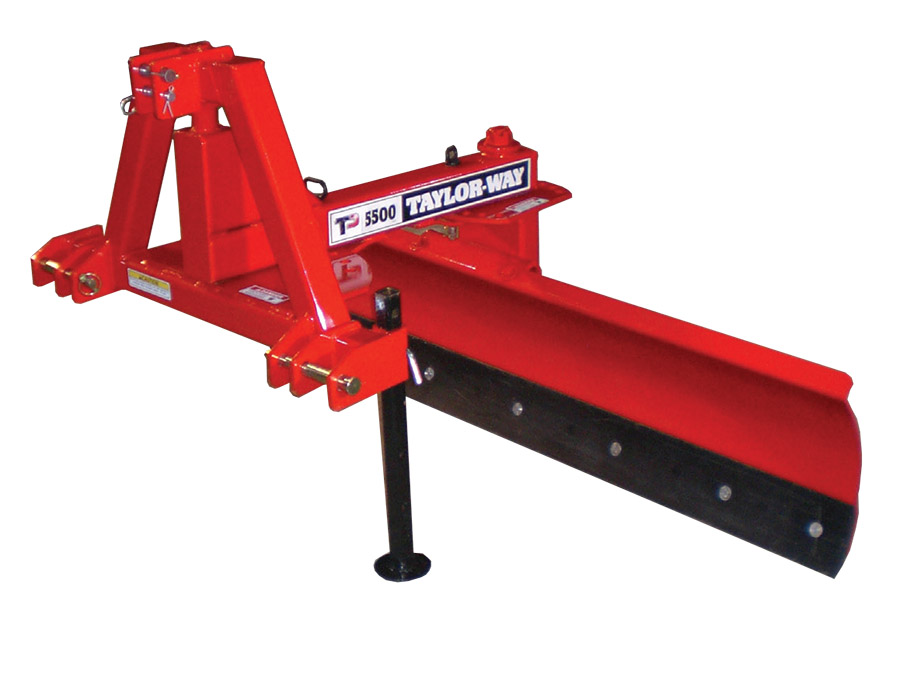

Series 5500 Rear Blade
| Series | 5500 |
|---|---|
| Operating Width | 6' / 7' / 8' |
| Horsepower Rating | 55 HP @2wd / 45 HP @4wd |
| Hitch Type | Cat. I & Cat. II Straddle Type |
| Moldboard | 5/16" x 15 ¼" |
| Cutting Edge | ½" x 6" Reversible |
| Angle Adjustment | 0˚-15˚-30˚-45˚ Forward 0˚-15˚-30˚ Reverse |
| Tilt Adjustment | 0˚-15˚-30˚ Up or Down |
| Offset Adjustment | 0"-7 "-14 ¼"-20 ½" Left or Right |
| Approx. Weight | 485lbs. / 510lbs. / 535lbs. |
| Adjustment Types | Manual |
| Optional Moldboard End Plates | No |
| Optional Skid Shoes | No |
| Parking Stand | Yes |
