- Series 650 Heavy Duty Offset Disc Harrow
OPTIONAL
1" x 2" flexible steel hanger design to absorb shock load for increased bearing and axle life
Heavy Duty Offset Disc Harrow
Series 650
650 Series Item | Specifications |
---|---|
Cutting Width Range | 8' 9" to 17' 11" |
Avg. Wt. Per Blade | 186 lbs. |
Disc Spacing | 9" or 10 ½" |
Blade Diameter | 24" or 26" |
Blade Thickness | ¼" Guage |
Transport Cylinder/Hoses | 5" x 8" Double Acting Standard |
Tongue Jack | 3000 lbs. Standard |
Gang Bolt Wrench | Optional |

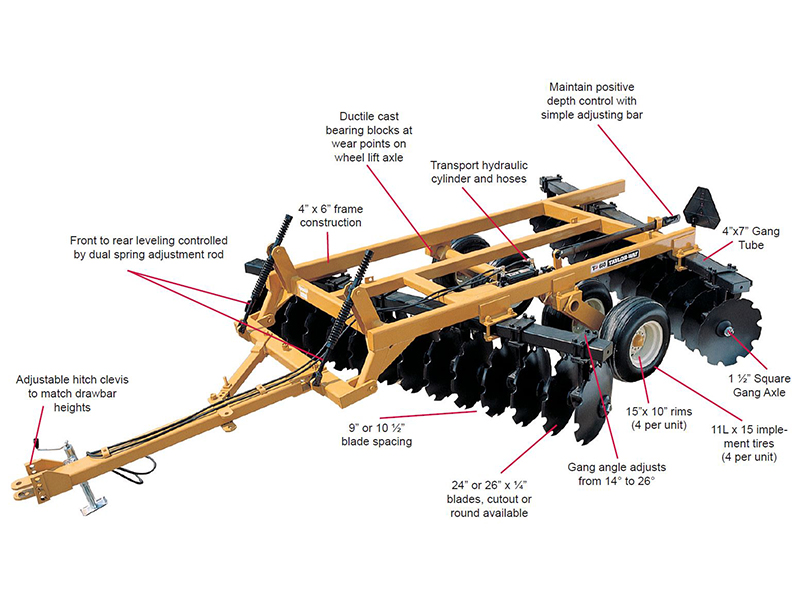

Proven and precise, Taylor Pittsburgh’s 650 Heavy Duty Offset Disc Harrow is the premium implement when you want customized options and power to get the job done right. The offset configuration provides maximum pulverization for primary as well as secondary tillage applications. Design features include heavy tubular frame construction, 1 ½” square gang axles for strength and trunion mounted re-greasable bearings.
Heavy duty with superior leveling capabilities, the 650 encompasses a broad range of cutting widths and blade spacings to select. That means you’ll never have to sacrifice what you really want from your implement when you choose Taylor Pittsburgh. Whether you need the 9” spacing or 10 ½” spacing, you’ll feel like this Disc Harrow was custom built just for you.
Offset Disc Harrow – 9" Disc Spacing
Cutting Width | Bearing Hanger Type | Number of Discs | Approx. Unit Weight 24" Blades | Number of Bearings | Approx. DB Hp |
---|---|---|---|---|---|
9' 1" | Rigid | 25 | 4,895 lbs. | 8 | 80 HP |
9' 1" | Flex | 25 | 4,980 lbs. | 8 | 80 HP |
10' 7" | Rigid | 29 | 5,170 lbs. | 12 | 100 HP |
10' 7" | Flex | 29 | 5,310 lbs. | 12 | 100 HP |
12' 0" | Rigid | 33 | 5,590 lbs. | 8 | 120 HP |
12' 0" | Flex | 33 | 5,730 lbs. | 8 | 120 HP |
14' 1" | Rigid | 39 | 7,005 lbs. | 16 | 140 HP |
14' 1" | Flex | 39 | 7,195 lbs. | 16 | 140 HP |
16' 3" | Rigid | 45 | 7,615 lbs. | 18 | 160 HP |
16' 3" | Flex | 45 | 7,830 lbs. | 18 | 160 HP |
17' 8" | Rigid | 49 | 8,070 lbs. | 20 | 180 HP |
17' 8" | Flex | 49 | 8,310 lbs. | 20 | 180 HP |
Offset Disc Harrow – 10 ½" Disc Spacing
Cutting Width | Bearing Hanger Type | Number of Discs | Approx. Unit Weight 24" Blades | Number of Bearings | Approx. DB Hp |
---|---|---|---|---|---|
8' 9" | Rigid | 21 | 4,550 lbs. | 8 | 80 HP |
8' 9" | Flex | 21 | 4,645 lbs. | 8 | 80 HP |
10' 5" | Rigid | 25 | 5,015 lbs. | 8 | 100 HP |
10' 5" | Flex | 25 | 5,110 lbs. | 8 | 100 HP |
12' 1" | Rigid | 29 | 5,480 lbs. | 12 | 120 HP |
12' 1" | Flex | 29 | 5,620 lbs. | 12 | 120 HP |
14' 7" | Rigid | 35 | 6,915 lbs. | 14 | 140 HP |
14' 7" | Flex | 35 | 7,080 lbs. | 14 | 140 HP |
16' 3" | Rigid | 39 | 7,380 lbs. | 16 | 160 HP |
16' 3" | Flex | 39 | 7,570 lbs. | 16 | 160 HP |
17' 11" | Rigid | 43 | 7,845 lbs. | 18 | 180 HP |
17' 11" | Flex | 43 | 8,060 lbs. | 18 | 180 HP |
