- Series 670 Offset Disc Harrow
OPTIONAL

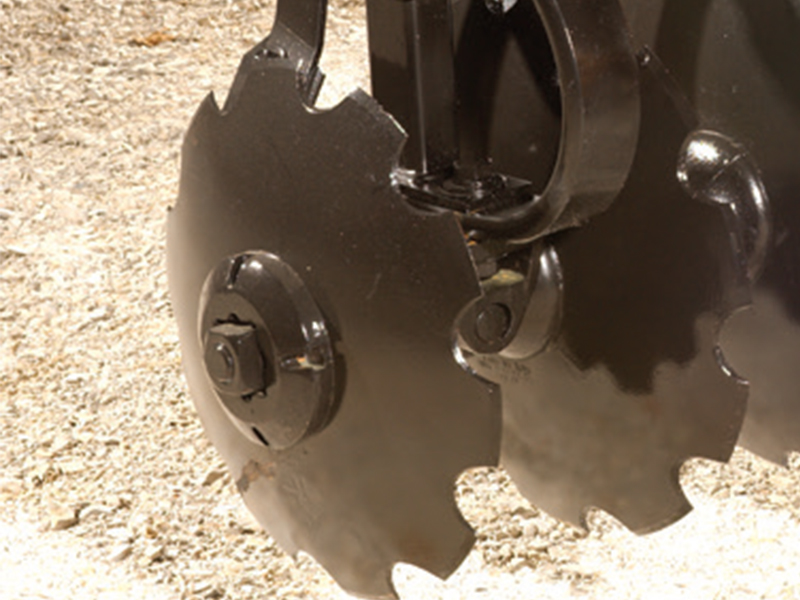

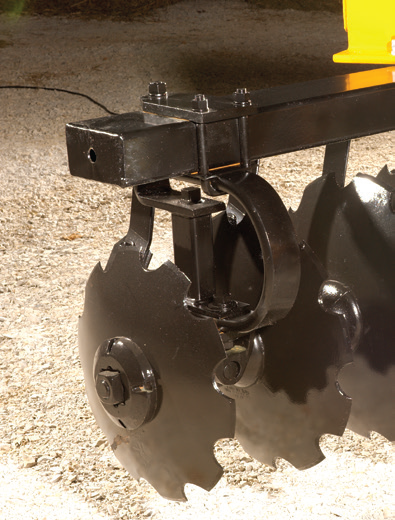

1" x 2" flexible steel hanger design to absorb shock load for increased bearing and axle life

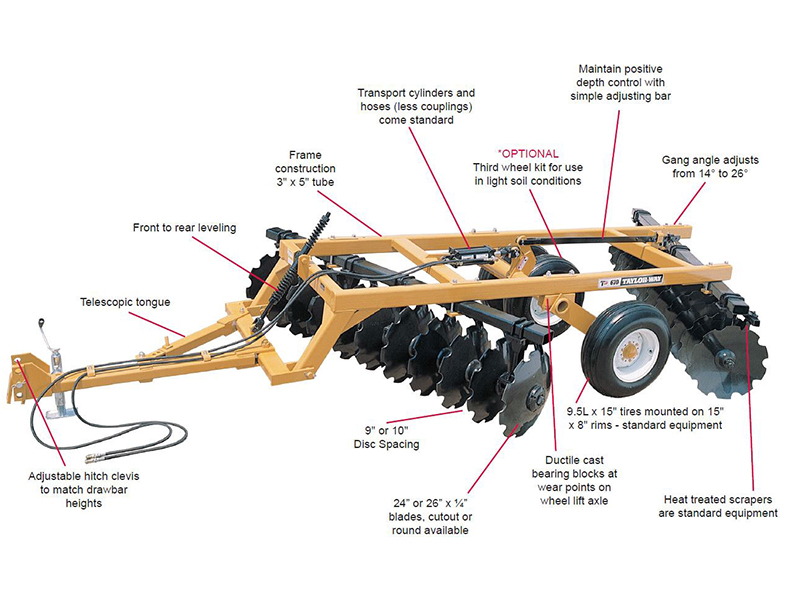

Offset Disc Harrow
Series 670
670 Series Item | Specifications |
---|---|
Cutting Width Range | 5' 6" to 9' 11" |
Avg. Wt. Per Blade | 156 lbs. |
Disc Spacing | 9" or 10" |
Blade Diameter | 24" or 26" (Cutout or Round) |
Blade Thickness | ¼" Guage |
Tongue Jack | 3000 lbs. Standard |
Gang Bolt Wrench | Optional |
Third Wheel Kit | Optional |
Taylor Pittsburgh’s 670 Offset Disc Harrow is the result of proven, field tested engineering to give you precision performance in a variety of applications. This heavy duty Harrow is ideal for light and heavy field tillage, firebreak cutting and many orchard applications. The offset design enables maximum penetration and even tillage of soil.
With over 12 widths to choose from, each available in standard or flex bearing hanger type, Taylor Pittsburgh’s 670 Series can easily be customized to meet your specific application and HP needs. The heavy construction features 1 ½” square gang axles and common gang components of our larger models, making the 670 one of the most durable and dependable Harrows in its class. Outstanding features and popular options from a name you trust...Taylor Pittsburgh.
Offset Disc Harrow – 9" Disc Spacing
Cutting Width | Bearing Hanger Type | Number of Discs | Approx. Unit Weight 24" Blades | Number of Bearings | Approx. DB Hp |
---|---|---|---|---|---|
5' 6" | Rigid | 15 | 2,620 lbs. | 4 | 40 HP |
5' 6" | Flex | 15 | 2,670 lbs. | 4 | 40 HP |
6' 3" | Rigid | 17 | 2,855 lbs. | 8 | 45 HP |
6' 3" | Flex | 17 | 2,925 lbs. | 8 | 45 HP |
6' 11" | Rigid | 19 | 3,010 lbs. | 8 | 50 HP |
6' 11" | Flex | 19 | 3,080 lbs. | 8 | 50 HP |
7' 7" | Rigid | 21 | 3,175 lbs. | 8 | 55 HP |
7' 7" | Flex | 21 | 3,235 lbs. | 8 | 55 HP |
8' 4" | Rigid | 23 | 3,320 lbs. | 8 | 65 HP |
8' 4" | Flex | 23 | 3,390 lbs. | 8 | 65 HP |
9' 9" | Rigid | 27 | 3,740 lbs. | 27 | 70 HP |
9' 9" | Flex | 27 | 3,830 lbs. | 10 | 70 HP |
Offset Disc Harrow – 10" Disc Spacing
Cutting Width | Bearing Hanger Type | Number of Discs | Approx. Unit Weight 24" Blades | Number of Bearings | Approx. DB Hp |
---|---|---|---|---|---|
5' 11" | Rigid | 15 | 2,855 lbs. | 4 | 45 HP |
5' 11" | Flex | 15 | 2,925 lbs. | 4 | 45 HP |
6' 9" | Rigid | 17 | 3,010 lbs. | 8 | 50 HP |
6' 9" | Flex | 17 | 3,080 lbs. | 8 | 50 HP |
7' 9" | Rigid | 19 | 3,175 lbs. | 8 | 55 HP |
7' 9" | Flex | 19 | 3,235 lbs. | 8 | 55 HP |
8' 4" | Rigid | 21 | 3,320 lbs. | 8 | 60 HP |
8' 4" | Flex | 21 | 3,390 lbs. | 8 | 60 HP |
9' 1" | Rigid | 23 | 3,685 lbs. | 8 | 65 HP |
9' 1" | Flex | 23 | 3,775 lbs. | 8 | 65 HP |
9' 11" | Rigid | 25 | 3,740 lbs. | 8 | 70 HP |
9' 11" | Flex | 25 | 3,825 lbs. | 8 | 70 HP |
