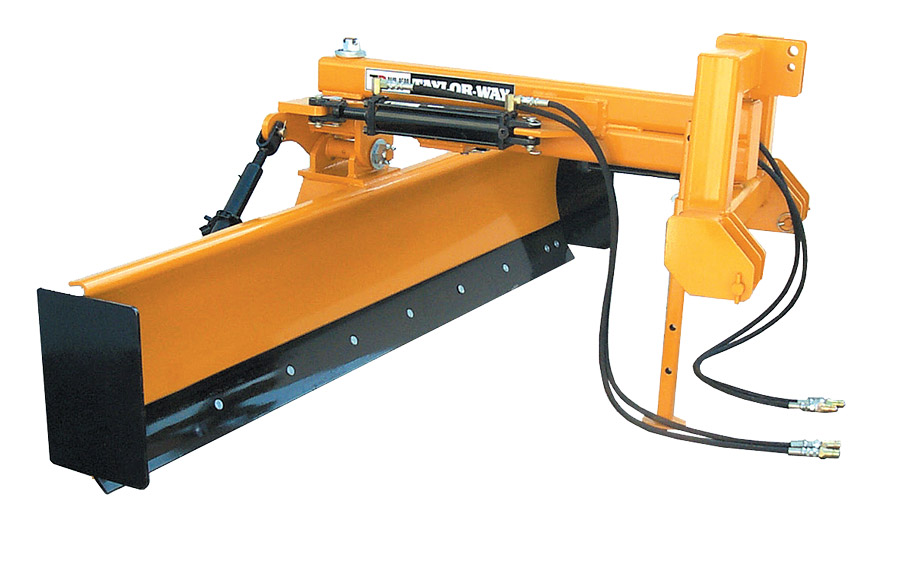

Rear Blade
Series 8500
Taylor Pittsburgh's 8500 Series Heavy Duty Rear Blades gives you the added features that make any heavy duty job easier than ever. Fully adjustable with mechanical or hydraulic adjustments on angle, offset and tilt functions. Constructed for strength with a heavy 4” x 4” x ⅜” main tube, straddle type combination 3-point hitch and you have a choice of optional end plates and skid shoes. The 8500 has a reversible cutting edge, a reversible curved moldboard and comes in 7’ or 8’ working widths. These rear blades are an excellent choice for leveling, ditching, landscaping, road maintenance, snow removal and more.
Series 8500 Rear Blade
| Series | 8500 |
|---|---|
| Operating Width | 7' / 8' |
| Horsepower Rating | 85 HP @2wd / 75 HP@ 4wd |
| Hitch Type | Cat. I & Cat. II Straddle Type |
| Moldboard | 5/16" x 18" |
| Cutting Edge | ½" x 6" Reversible |
| Angle Adjustment | Up to 36˚ Left or Right (Forward Or Reverse) |
| Tilt Adjustment | Maximum 24˚ Up and 28˚ Down |
| Offset Adjustment | 0" to 28 ¾" Left or Right |
| Approx. Weight | 793lbs. / 825lbs. |
| Adjustment Types | Mechanical, Hydraulic or Combination |
| Optional Moldboard End Plates | Yes |
| Optional Skid Shoes | Yes |
| Parking Stand | Yes |
