Sub-Compact Gear Driven Tiller
Series 923

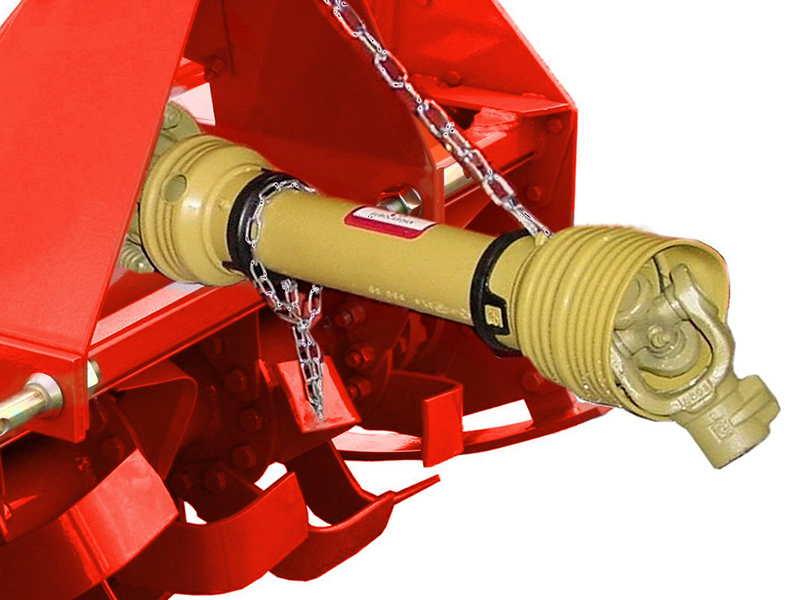

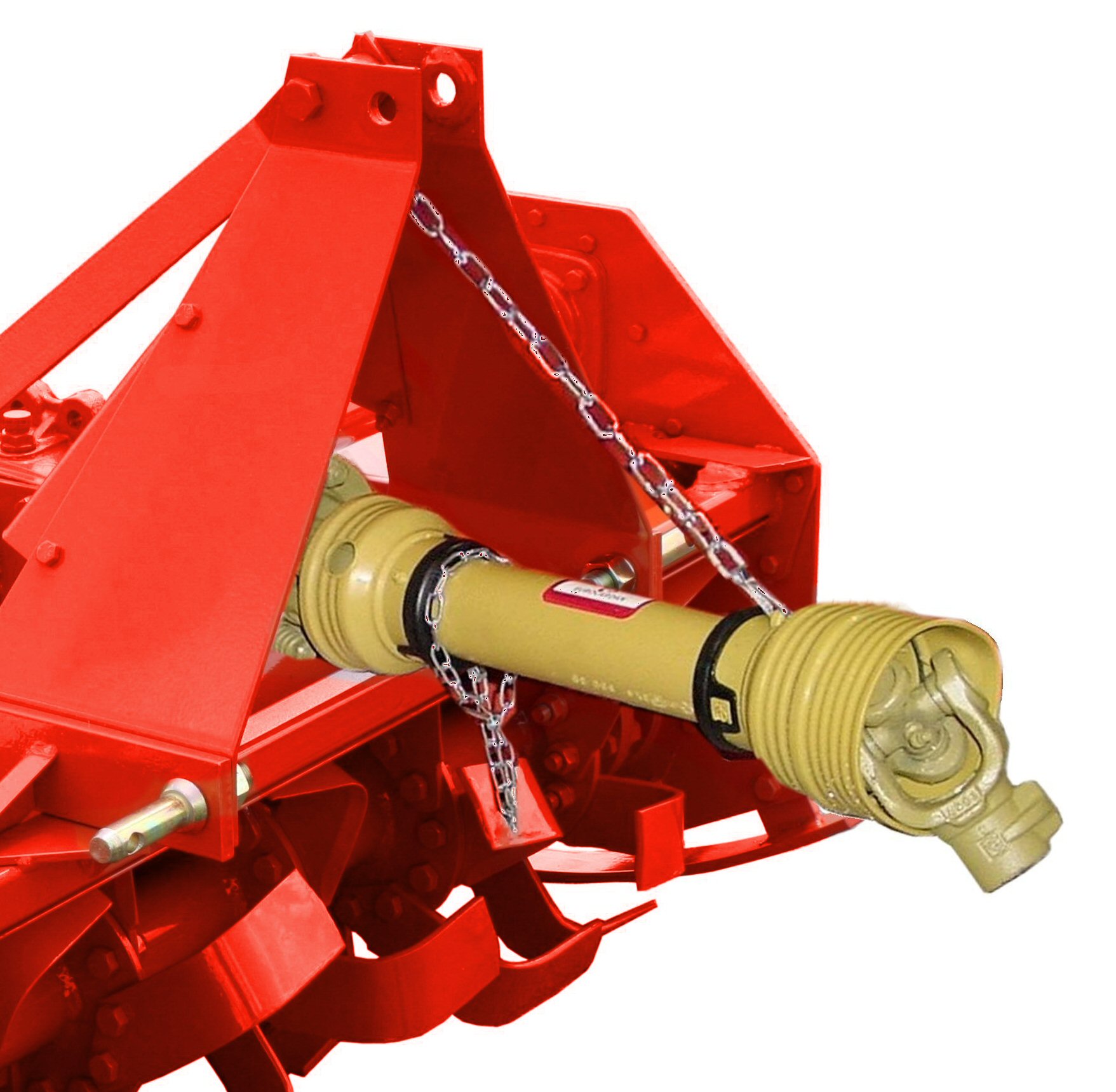

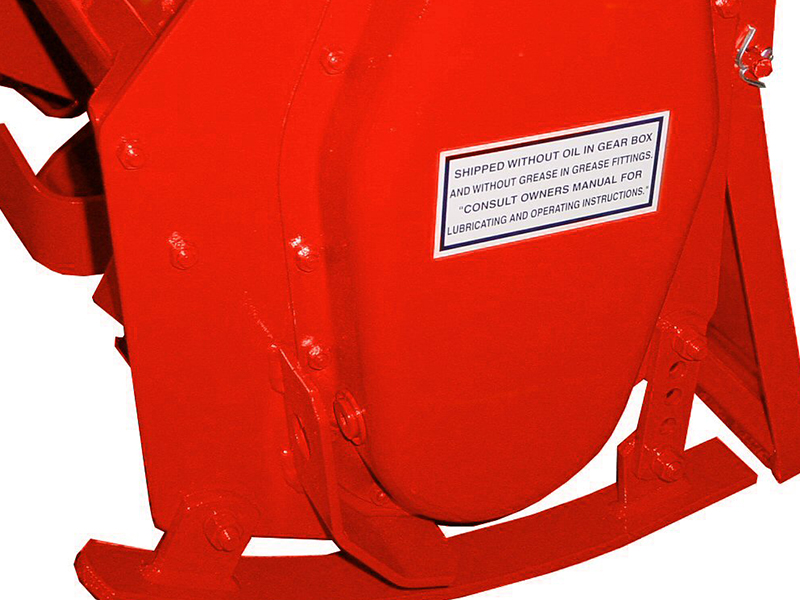

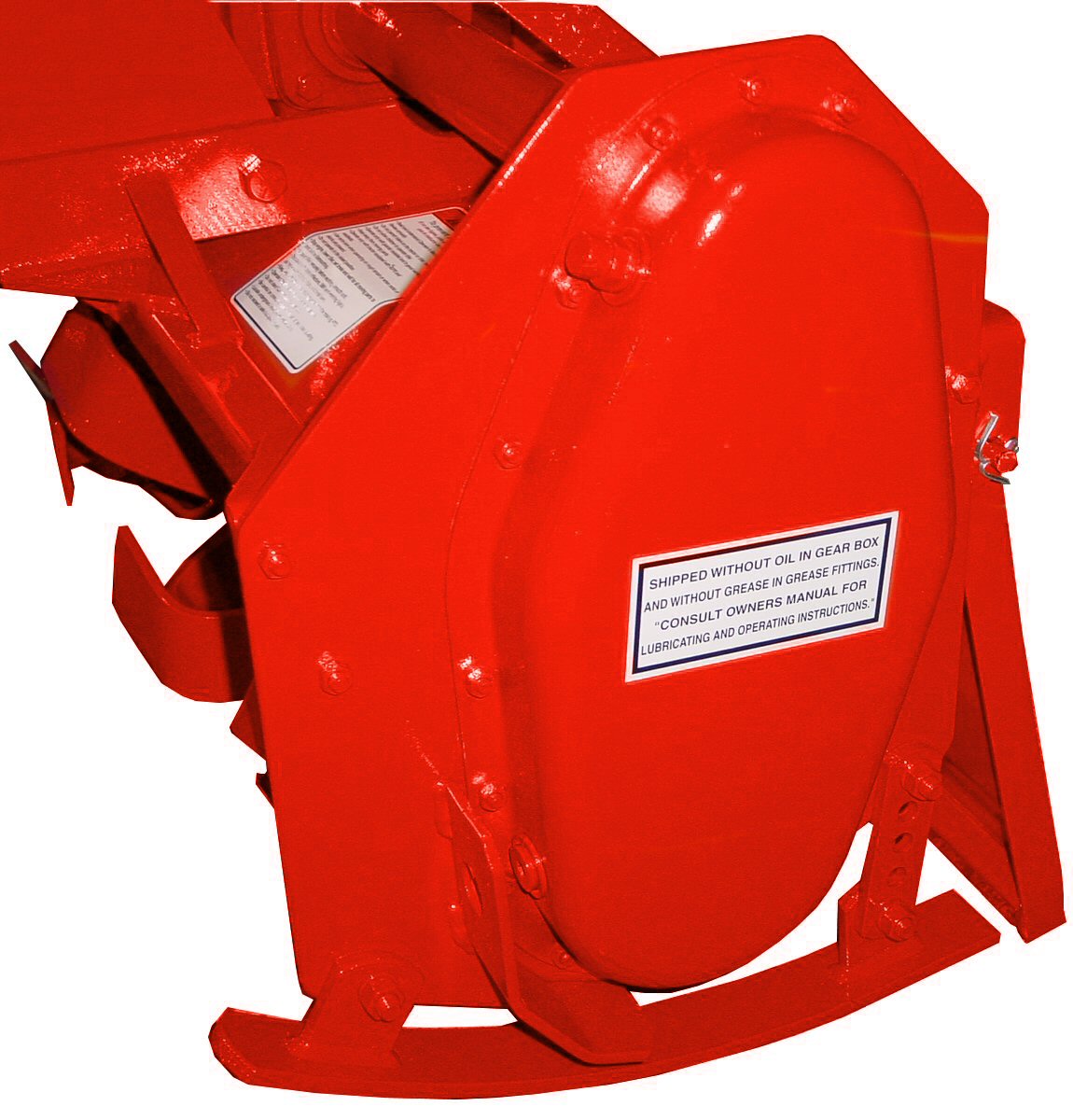

Get more work out of your sub-compact tractor with Taylor Pittsburgh's Sub Compact Gear Driven Tiller. The 923-GDT-48 (48”), for sub compact tractors up to 25 horse power and the 923-GDT-54 (54”) for small compact & large sub-compact tractors up to 35 horse power, both have all the quality features of the full size tillers. The heavy duty frame and six tines per flange produce a better seedbed. A slip clutch PTO shaft transfer’s power smoothly to the Gear Driven center and side gearboxes.
Series 923 Gear Driven Tiller
| Model | 923-GDT-48 / 923-GDT-54 |
|---|---|
| Working Width | 48" / 54" |
| Max. Tilling Depth | 8" |
| Drive Type | Gear Driven |
| Flanges | 6 |
| Number of Blades | 36 |
| Hitch | Limited Cat I |
| Drive Line | HD Drive Line |
| Protection | With Slip Clutch |
| Approx. Weight | 489 lbs. /520 lbs. |
| Min. HP Req. | 15 / 20 |
| Max. HP Req. | Up to 25 / Up to 35 |
