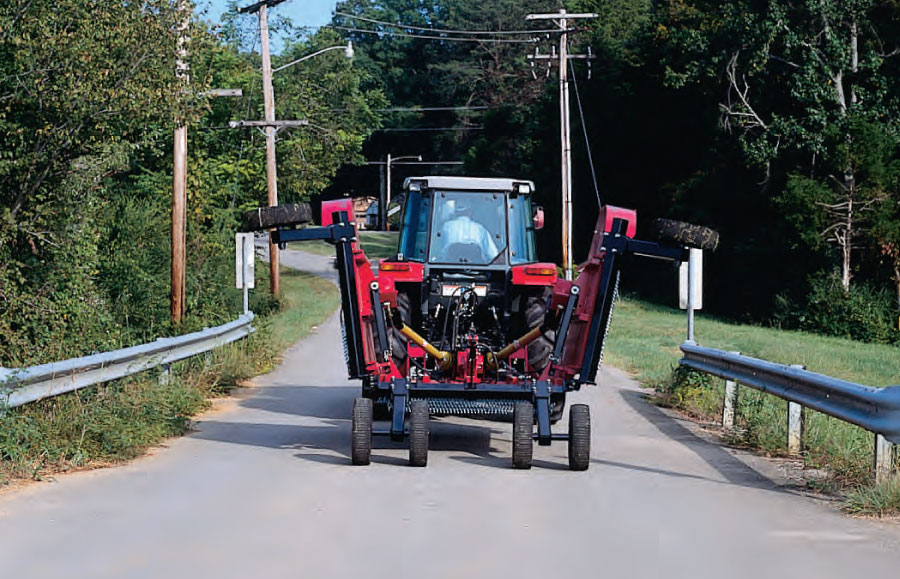

Flex-Wing Rotary Cutter
Series 1510 / 1550
Tough cutting applications are no match for Taylor Pittsburgh’s 1510/1550 15’ Flex-Wing Rotary Cutter. Try the industry’s best choice for maximum power and maneuverable cutting ability.
- Four Gearbox Design with a Main Splitter Gearbox and Three Independent Drive Gearboxes
- Rugged 7 Gauge Deck
- Spring Cushioned Wheel Axles
- Dual Center Section Wheels
- Round Stump Jumpers
- Constant Velocity Input PTO - Cat. 8 CV 540, Cat.6 CV 1000 Cat. 6 Wing Drivelines
- Slip Clutches on all Drive Gearboxes
- Replaceable Center Section and Wing Skid Shoes
- Heavy-duty Castering Straddle Type Hitch Clevis
- Self-leveling Tongue w/Dual Leveling Rods
- Heavy-duty Tongue Jack with Storage Location on the Deck
- Your Choice of Tires: 21" Laminated Tires or Heavy Ply Used Airplane Tires
| SERIES 1510 / 1550 | Specifications |
|---|---|
| Gearbox Horsepower Ratings | 540 RPM Splitter: 170 HP 1000 RPM Splitter: 240 HP 540 RPM Drive: 3 x 150 HP 1000 RPM Drive: 3 x 220 HP |
| Blade Tip Speed | 15,000 RPM |
| Blades | ½" x 4" High Lift |
| Hydraulic Cylinders | Wing: 3" x 12" Standard Transport: 3" x 8" Standard |
| Drivelines | Input: Cat. 8 CV 540, Cat.6 CV 1000 Wing: Cat. 6 Standard Slip Clutches: Standard |
| Deck Depth | 10" |
| Side Skirt Construction | ¼" Thickness |
| Cutting Height | 1" - 15" |
| Cutting Capacity | Brush up to 2" |
| Blade Overlap | 5 ½" |
| Wing Fold Angle | 90º Up, 22º Down |
| Recommended Minimum Tractor HP | 65 HP |
| Approximate Machine Weight | 4815 lbs. with Chains |
| Standard Features | Wheel Options |
|---|---|
| Parking Stand Wing Lift Cylinders Skid Shoes CV Driveline Cat. 8, 540 RPM CV Driveline Cat. 6, 1000 RPM Dual Center Section Wheels Front & Rear Chain Guards |
Laminated, Used Airplane |
